12" x 62.97 Km Approx Laying, terminal & Associated works from SV- 07S (Ch. 178.4 Km approx.) to Consumer Nalco (Ch. 62.97 Km approx.) Including Station Piping works for Dispatch station at SV-07S STATE: ODISHA
PIMS is to provide a current status report in respect of physical parts (generally pipes) of the pipeline. Items included in addition to pipes are bends, valves, assemblies, joints and tees.
During the lifetime of the GAIL pipelines, PIMS will keep track of the information related to the constituent parts of the GAIL pipelines (Pipes, Bends, Valves, Assemblies, Joints, Tees, Reducers) readily accessible.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
All information in PIMS will be kept as historical records, will act as a valuable tool to many areas of the Project in terms of future requirements, expectations and achieved performance.
Business ObjectiveEnsure an increased commitment at all levels in the organisation

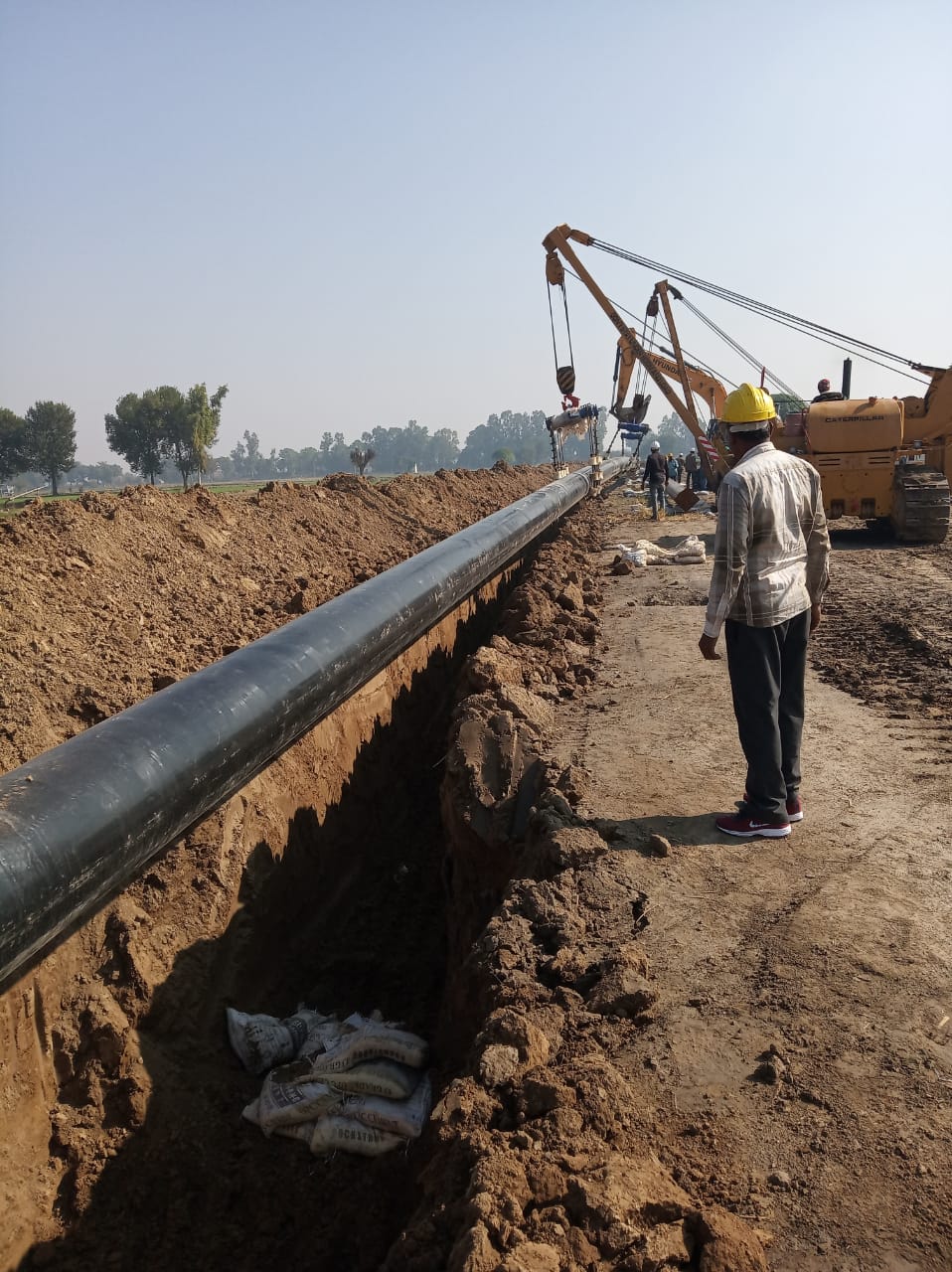

Pipe laying work including swabbing, drying, pre-commissioning, commissioning of 18” Dia
Project Name : Nagpur -Jharsuguda & NTPC Korba Spur section Pipeline of MNJPL Project (Section-1)
| Project Name | : | Nagpur -Jharsuguda & NTPC Korba Spur section Pipeline of MNJPL Project (Section-1) | |
| Project Length | : | 119 Km | |
| Material Specification | : | API 5L X-70 PSL 2 | |
| Diameter | : | 18 " | |
| Wall Thickness (mm) | : | 8.2 mm, 9.7 mm & 11.9 mm | |
| Coating | : | : 3LPE external coating and internal epoxy coating | |
| Client | : | GAIL INDIA LIMITED | |
| Consultant | : | Engineers India Ltd |  |
| Contractor | : | Corrtech International Limited. |  |
| PIMS | : | Unistal Systems Pvt. Ltd. |  |
| Start Date | : | 1-Feb-2023 | |
| End Date | : | 1-Apr-2024 |
| Spread | Section | Chainage From | Chainage To | Length |
|---|---|---|---|---|
| SPREAD 1A | SECTION 1 | 00 KM | 60.750KM | 60.750KM |
| SPREAD 1B | SECTION 1 | 60.750 KM | 119.000KM | 58.250KM |
�
Services By Unistal System Pvt. Ltd.
